005-022-0X0

Description

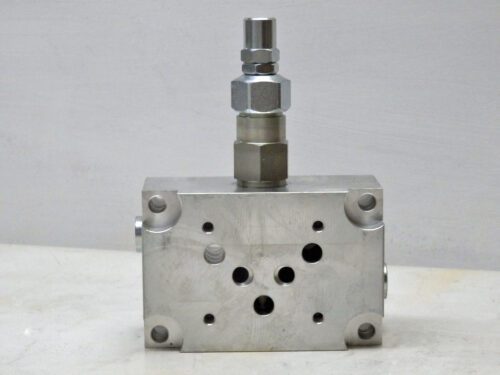

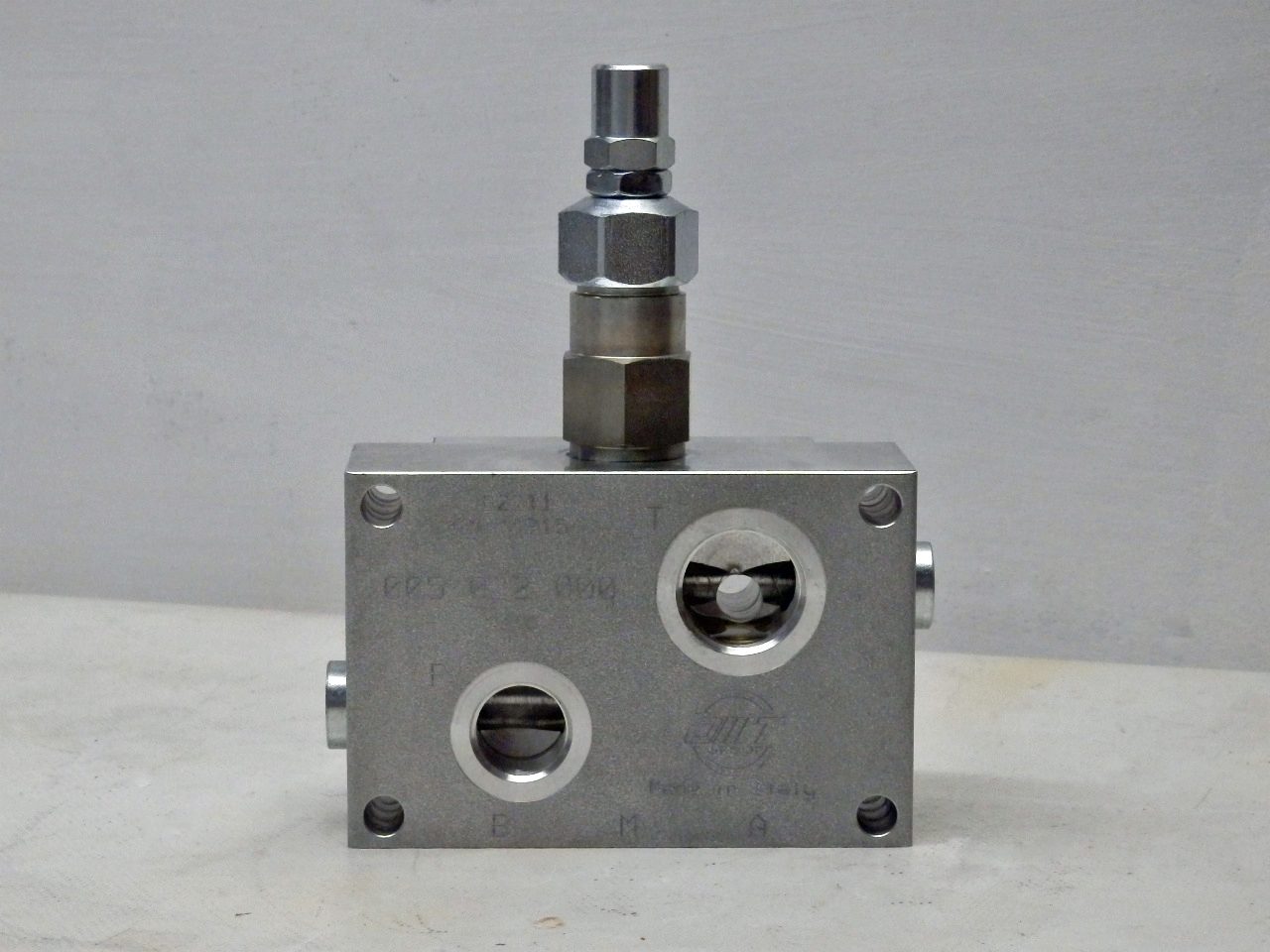

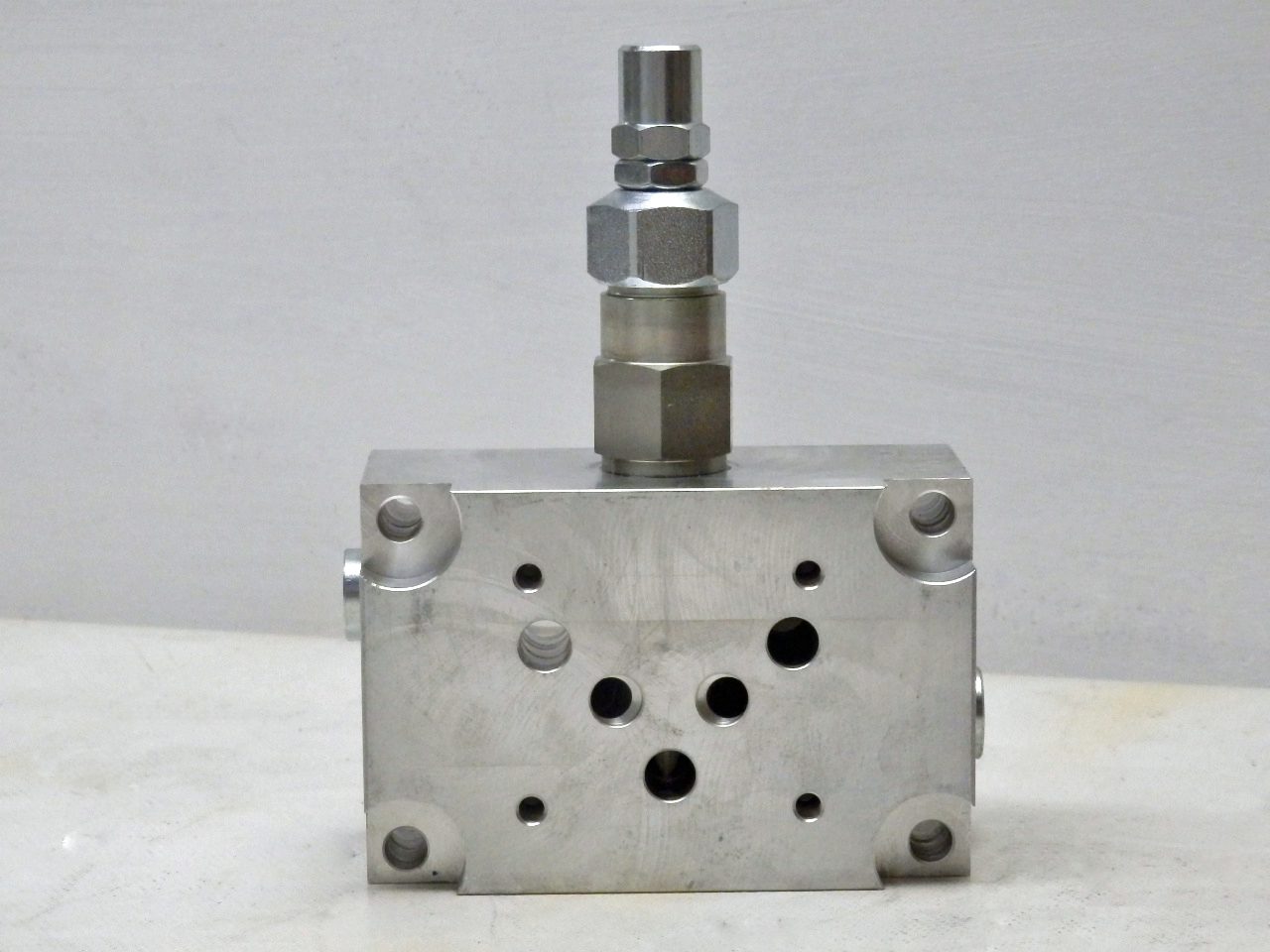

OMT Group Valves Part Number- 005-022-0X0

OMT Group Valves Description – VMP/80/CBE/E-12-34-14 – CETOP 5 Subplate Relief

Nominal Flow – 80 LPM

Working Pressure – 350 Bar

Number of Ports – 5

Port Size – M – 1/4″ BSP

Ports – T -3/4″ BSP  – P – 1/2″ BSP – A – B – 1/2″ BSP

In order to constantly improve the quality of our products, we retain the right to make changes to the products and specifications at any time without prior notice.

Customers have the responsibility to continuously check all the information on all data sheets.
