PMI12

Description

Oleoweb Part Number – PMI12

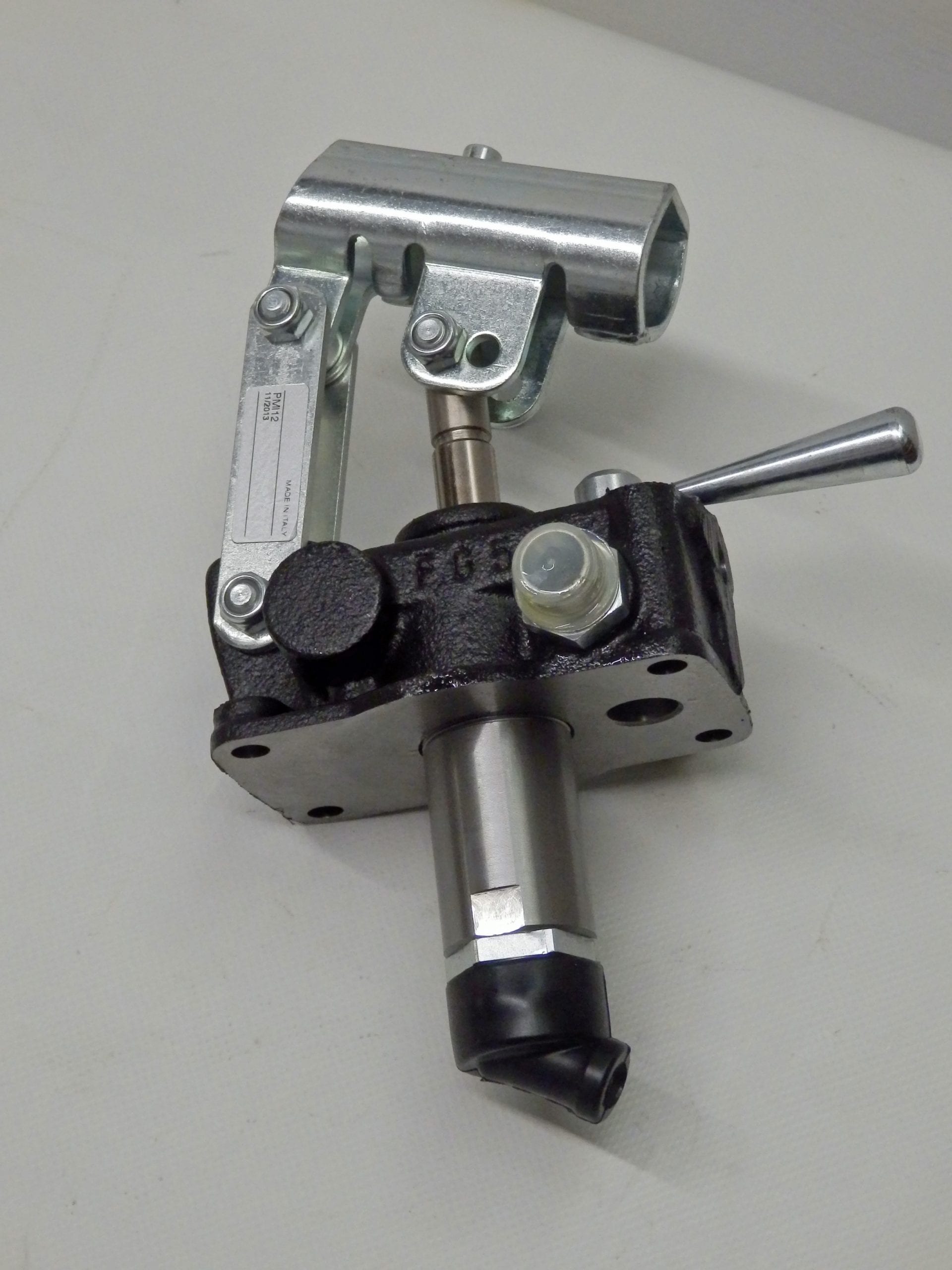

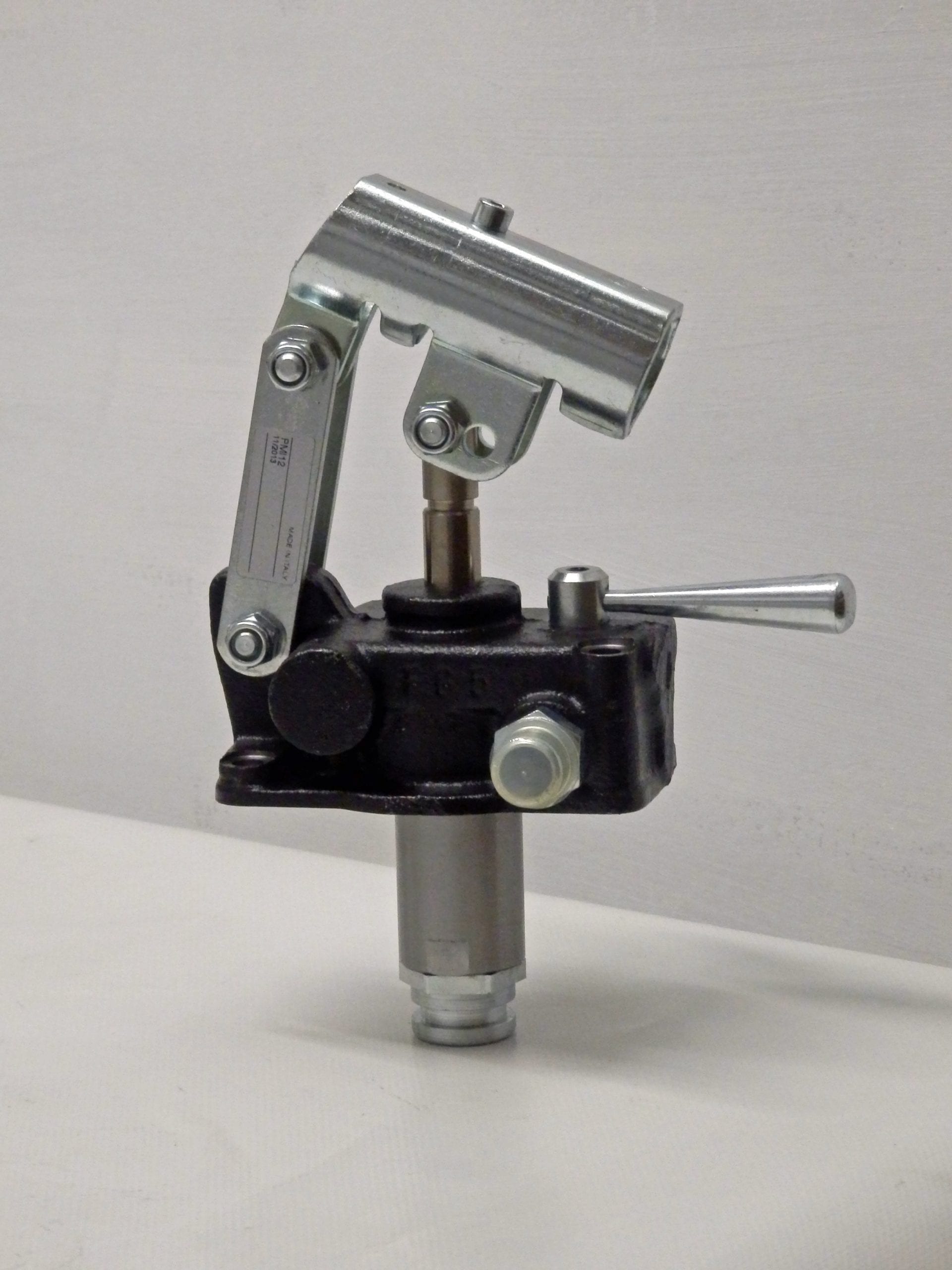

Oleoweb Description –  Double Pumping Hand Pump For Double Acting Cylinder – Closed Centre

Displacement – 12 cm3

Optimal Pressure – 220 Bar

Maximum Pressure – 380 Bar

Ports – 3/8″ BSP Male

Tanks:-

TNA-1 / TNA-2 / TNA-3 / TNA-5

17900001 / 17900002 / 17900003

17900006 / 17900004 / 17900005

In order to constantly improve the quality of our products, we retain the right to make changes to the products and specifications at any time without prior notice.

Customers have the responsibility to continuously check all the information on all data sheets.
